50mm (2") Coin Jigs (Fiber Laser, Xtool F1/F2 & Ultra Lasers) Steel Won't Melt! - Free Templates

All-in-ONE 50mm (1.96"/2") Laser COIN JIGS - With FREE TEMPLATES! Solid Steel ! Be sure to read what each version fits:

NOTE: You must ADD the jig to your cart, THEN go back and add the bolts to your cart if you want BOTH.

A true 50mm coin blank is 1.96" (aka 2 inch coin) - So you should measure your coins to affirm fitment. IN the specs below you'll see the exact diameter opening of our jigs. >>

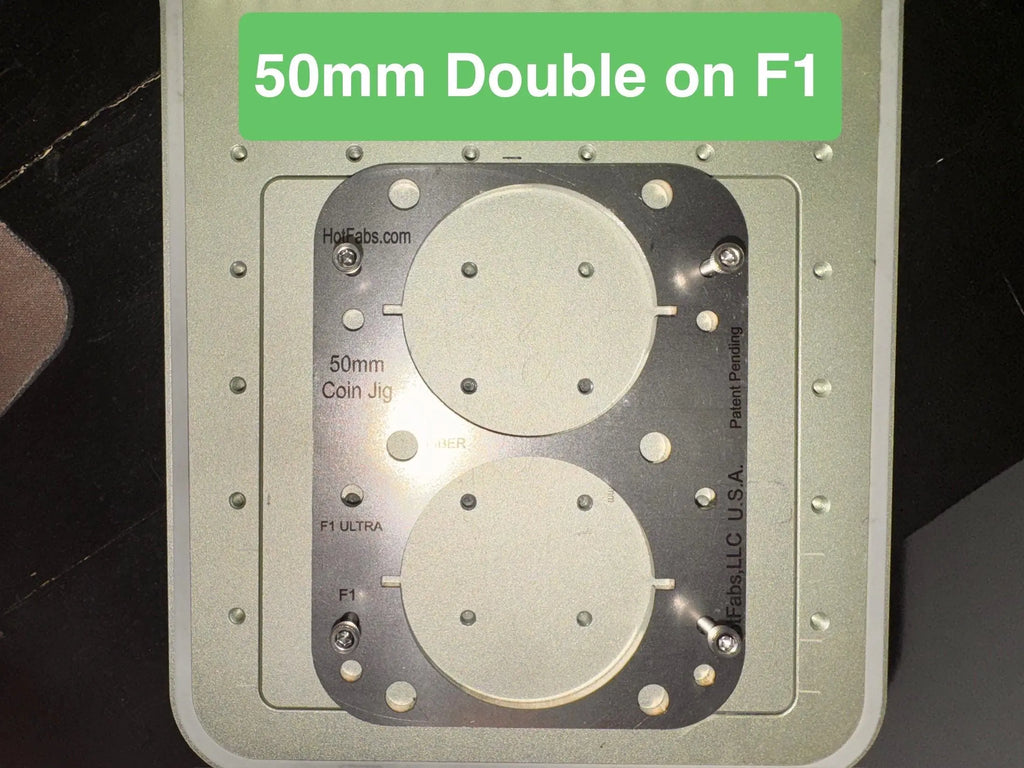

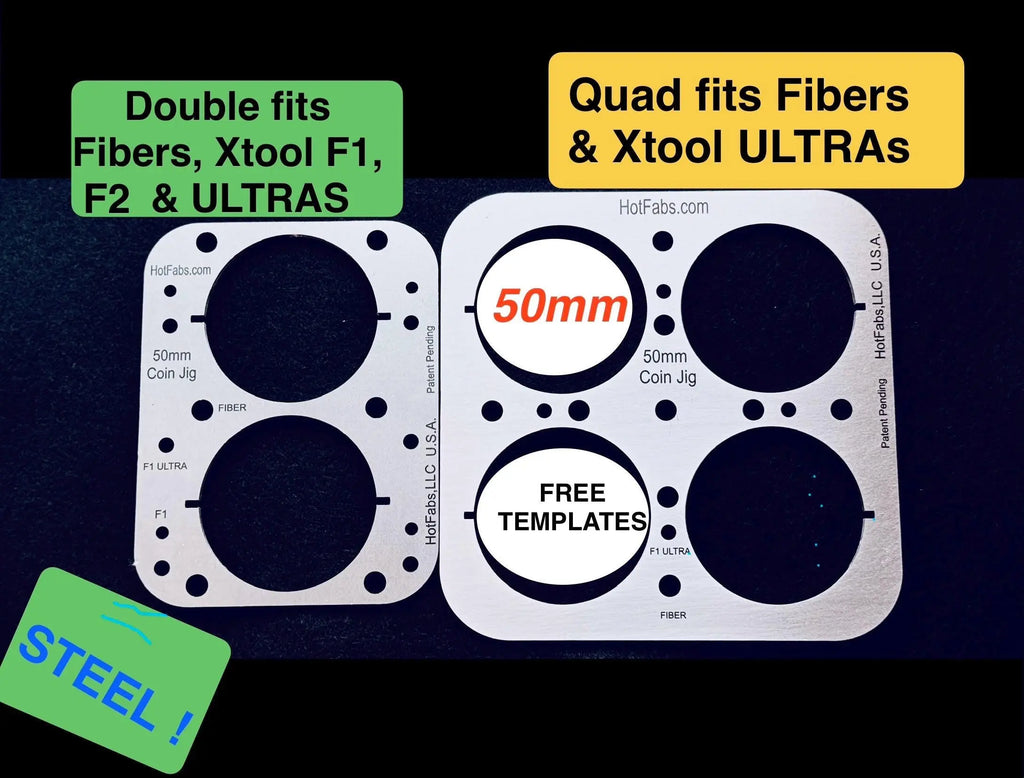

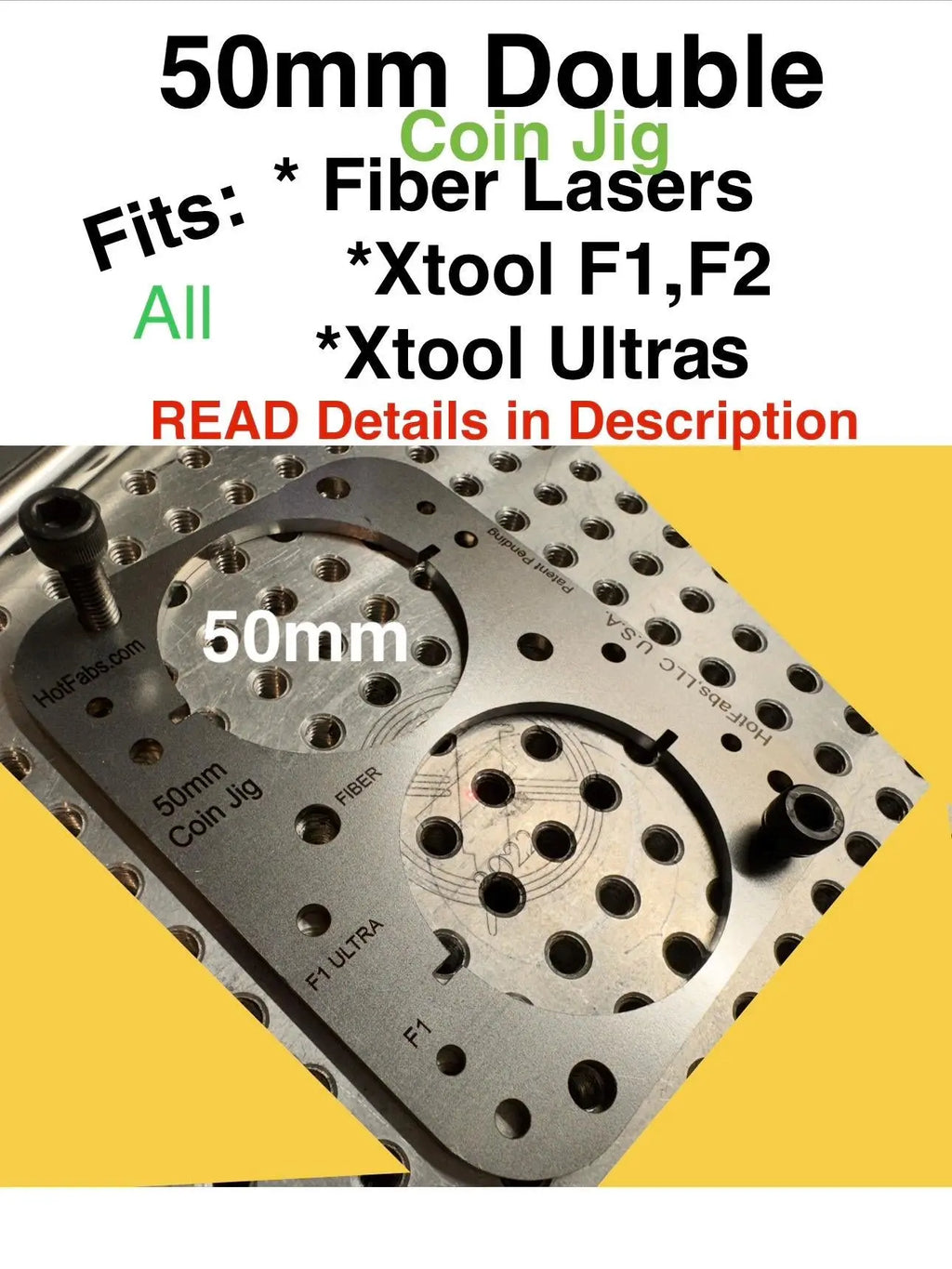

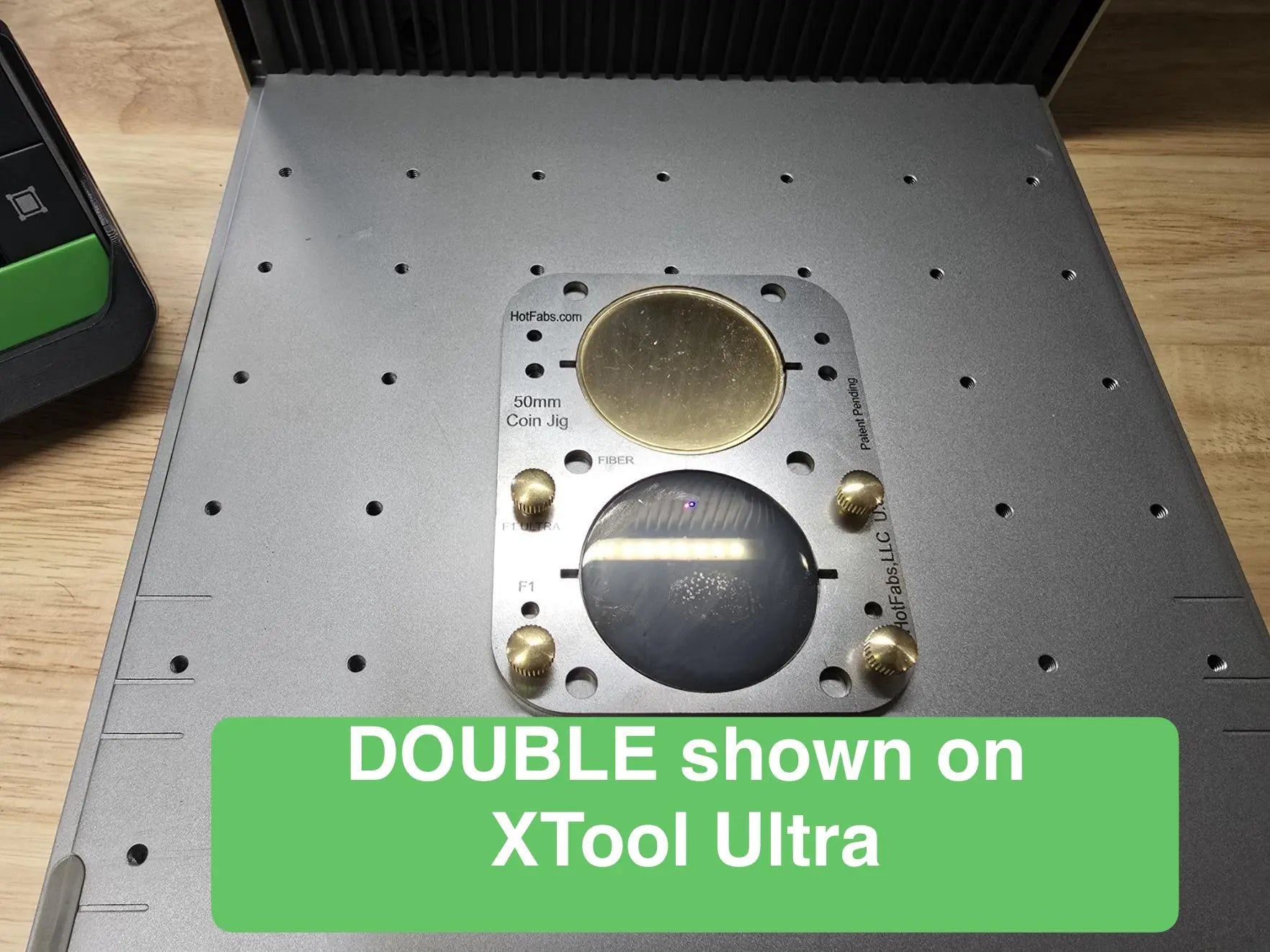

DOUBLE 50mm Coin Jig Fits all 3!

• XTOOL F1 & F2 Laser
• XTOOL F1 ULTRA & F2 ULTRA Laser
• FIBER Lasers using 6mm (M6) bolt beds (25mm-50mm spacing).

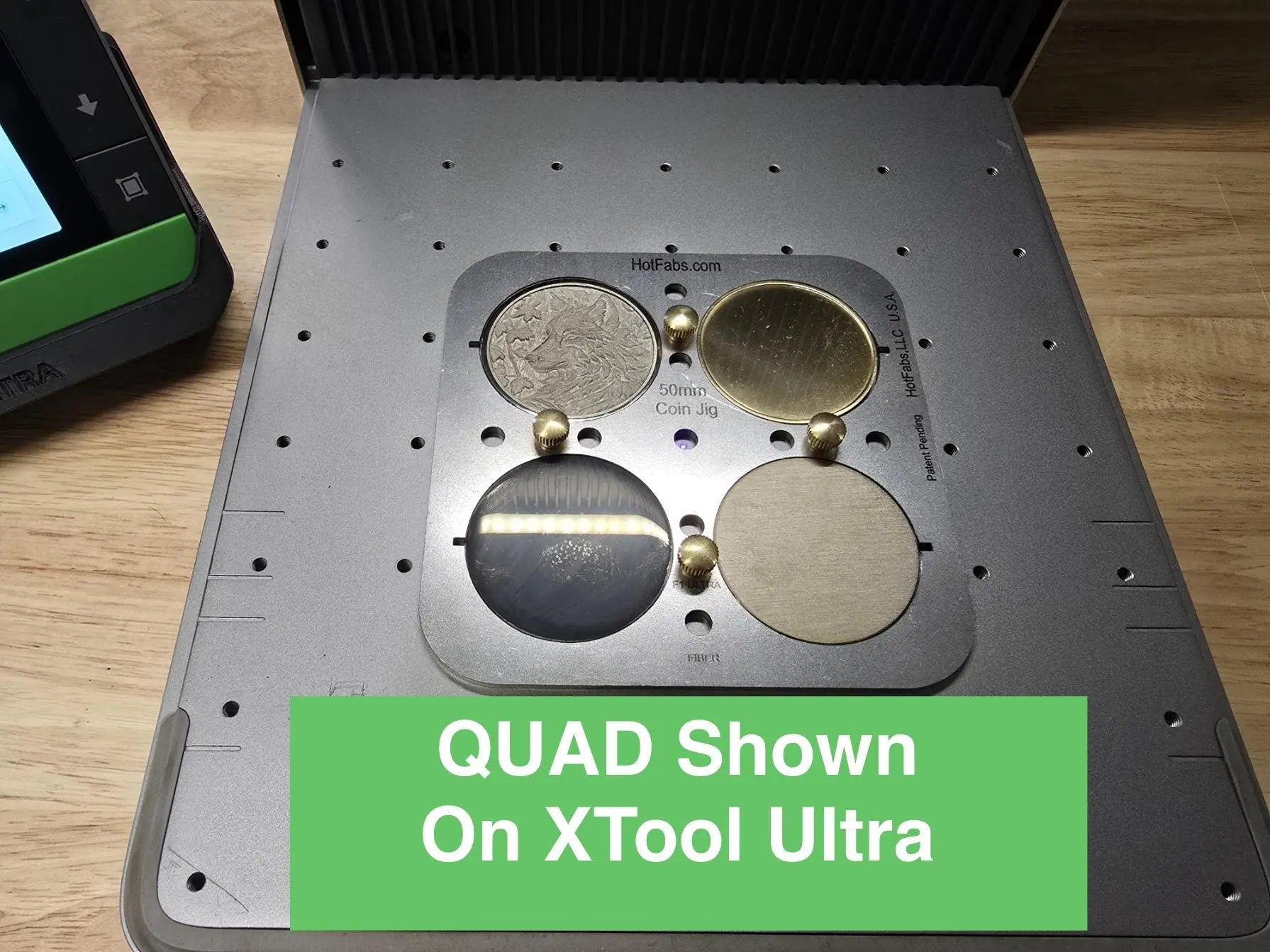

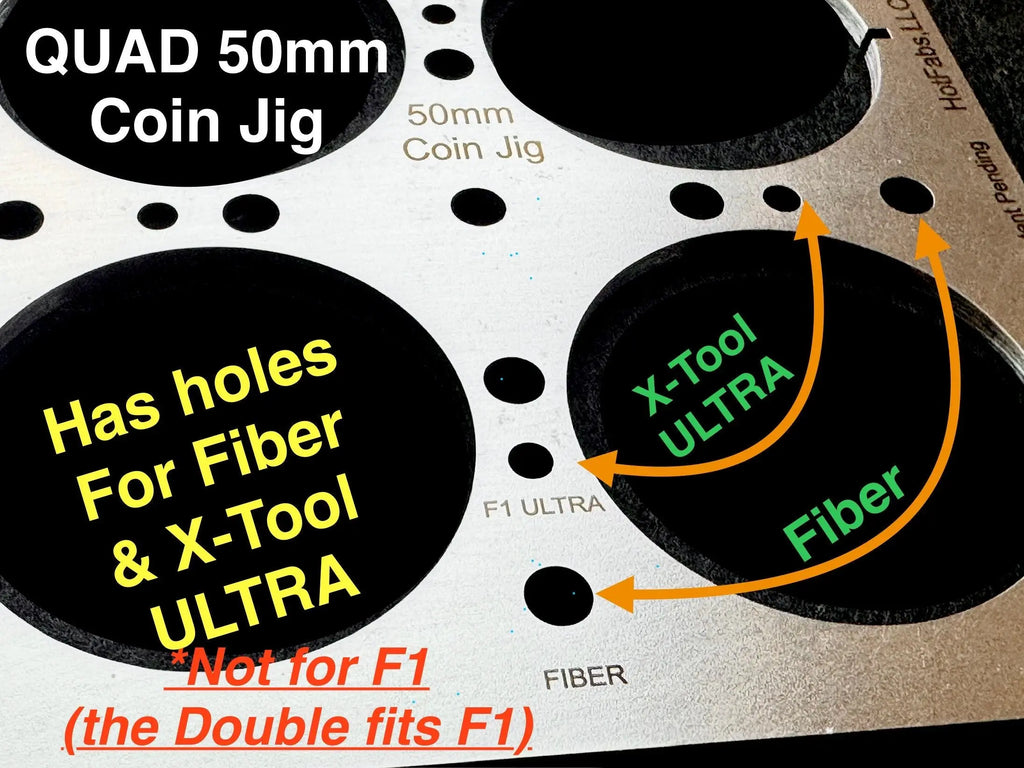

QUAD 50mm Coin Jig Fits 2 below:

• XTOOL F1/F2 ULTRA Lasers (NOT the F1/F2 small lasers).
• FIBER Lasers using 6mm (M6) bolt beds (25mm-50mm spacing)

In a nutshell, the double version has holes for all 3.
Quad has holes for 2 - as stated above.

**READ ALL SPECS BEFORE BUYING & LOOK at ALL PHOTOS BEFORE YOU BUY**

This 50mm jig fits into the “All-in-One” category due to its multiple application sizing.

If one day, you own all 3 lasers mentioned above - NO need to buy Another Jig! :-). If you’re looking for different coin size jigs, we also sell our 40mm sized coin jigs; AND some jig adapters for 25mm & 1.25” coins TOO!! That could save you some money.
This item is Patent Pending.

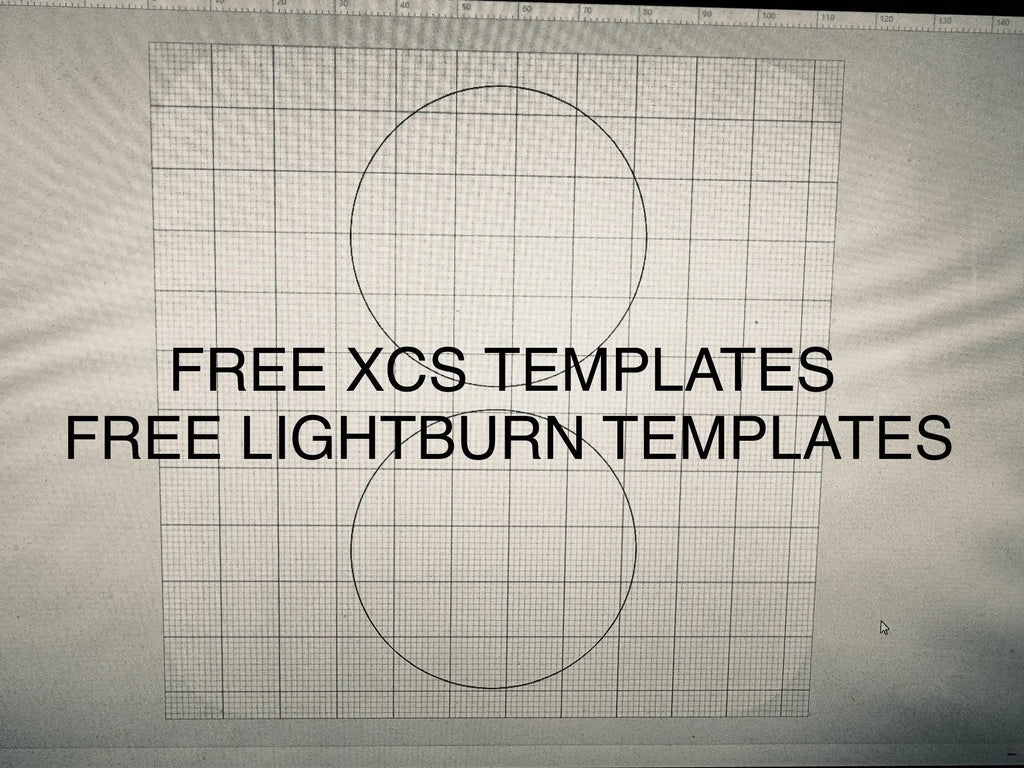

*Our FREE Templates for Lightburn or XCS assure proper placement. You download them after purchasing here.

NOTE Machines can vary slightly in calibration, but the template outlines are adjustable if you ungroup them. *Note that we haven't made a specific F2 or F2 Ultra Template - but in XCS - you can open the appropriate F1 or F1 ULTRA template and it will be close - but may need “nudged” in position.

IMPORTANT NOTE on COIN BLANKS: Some of the cheaper blanks you find on Amazon, Ebay, or Etsy - are slightly less than 50mm - about 49.90. We even ran across a nice bushed one that measures 49.5!!. 49.5mm will be too sloppy. A 49.90 will work with this jig. But expect more play than the higher quality machined blanks close to the actual 50.0mm size (usually 49.97).
You must measure your coins to know the tolerances before buying. **IMPORTANT - READ ALL BEFORE BUYING.

• This jig is 3mm thick steel. Will not melt, or burn like 3d printed - or wood jigs. IF you are deep engraving metal coins - you need this jig due to the heat. It also has a slot for picking the coin blanks out. 50mm Jig: Opening is exactly 50.3mm(+\-0.05). So, check your actual coin diameter. This opening is a little over 50mm to precisely fit the more expensive coins that are exactly 50mm AND allows for EXACT placement without getting STUCK during hotter engraves.

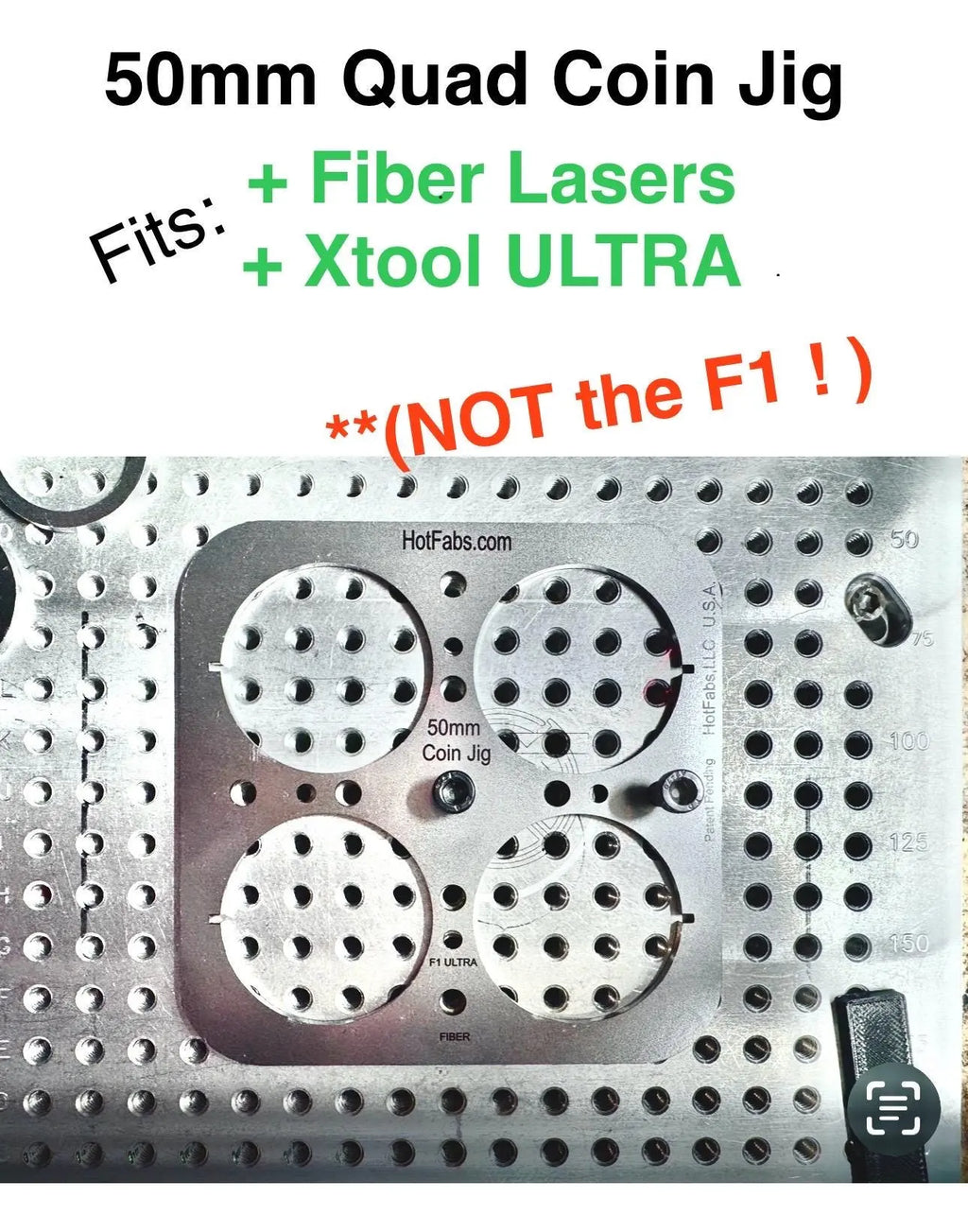

• IMPORTANT PLACEMENT NOTE for the Quad coin jig ONLY: The Quad is too big for the Original XTool F1/F2 bed (small laser). So it only fits the F1 ULTRA, F2 ULTRA and Fiber Laser Beds.

WHAT'S INCLUDED: 1 Steel Coin Jig. YOU Choose between DOUBLE or QUAD** **(however, Quad is not for F1 or F2). (NOTE IF YOU WANT Bed Bolts. They are machine-specific. AFTER you add the JIG you want, then come back and add the BOLTS. Then you can check out on the same order.

• READ ABOUT BOLTS Please....

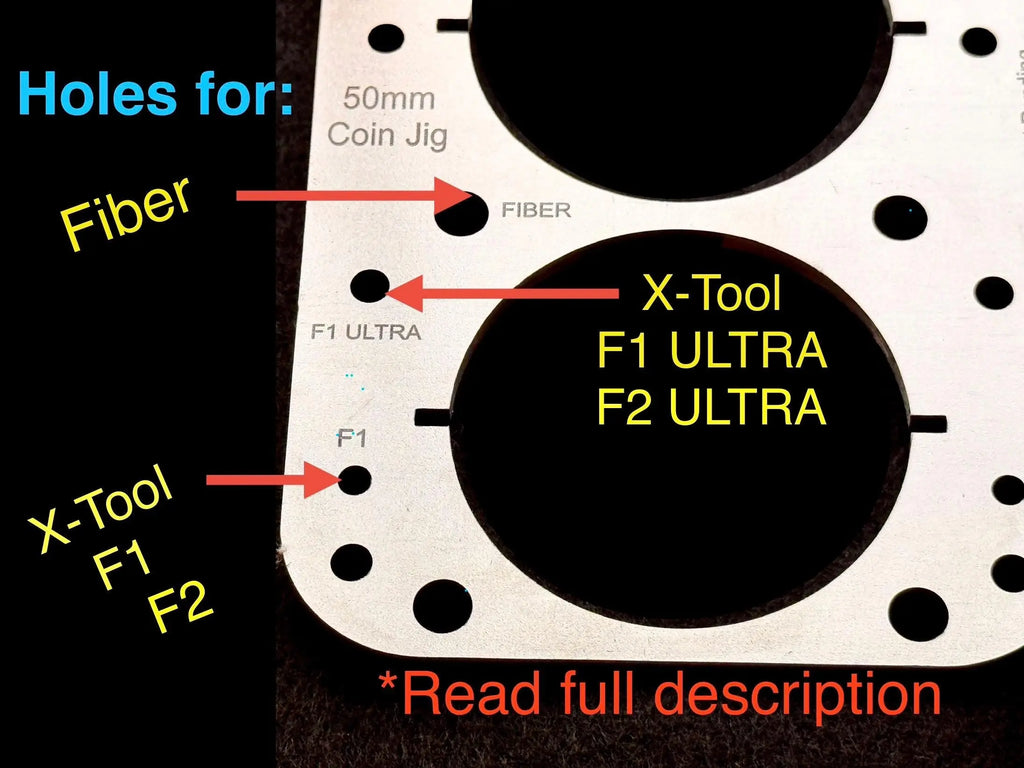

• Holes fit 3mm (M3) for F1/F2 beds;
• 4mm (M4) for Ultra beds ;

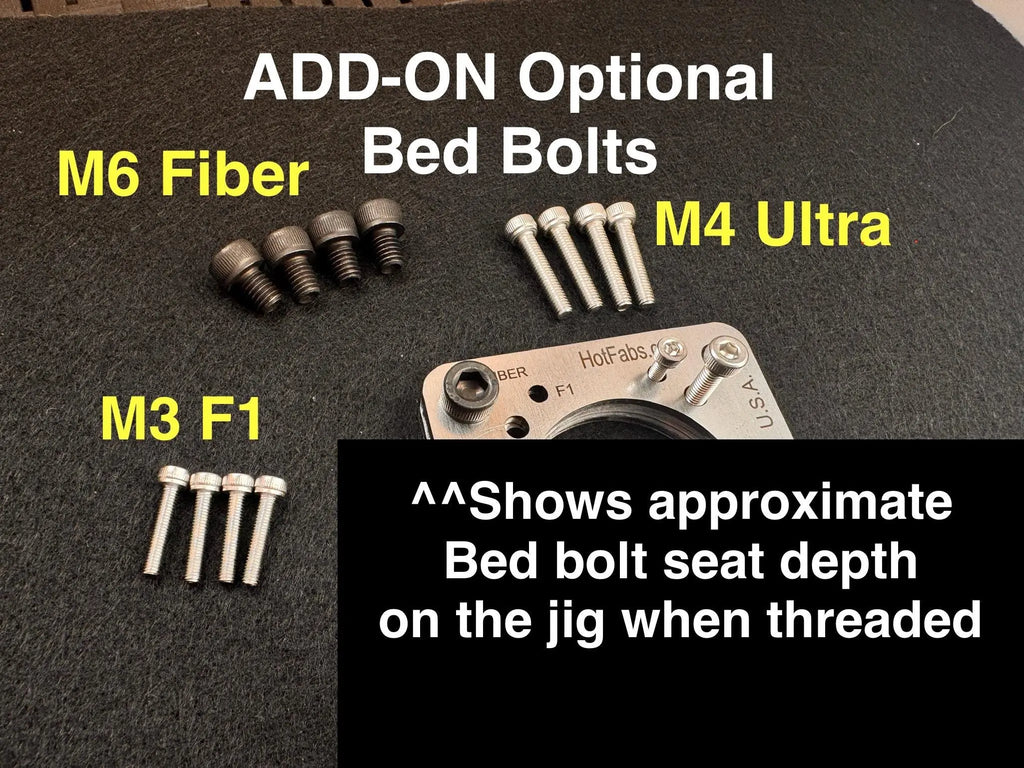

• and 6mm (M6) for Fiber (bolts are NOT included). They are AVAILABLE separately here as an add-on: Sizes are as follows:
• M6 (for Fiber beds) (6mm diameter x 1.0 pitch x 8mm thread length) this will hold your new jig down tight and not stick up. Available in packs of 4. (please verify your fiber uses this size first). Bolts may be stainless or black steel.
• M4 (for Xtool Ultra beds) (4mm diameter x 0.7 pitch x 20mm thread length) this will protrude above the jig (not hold down tight) for easier removal and installation. With 4 of them it will be secure enough laterally, as this is how we use them.
• M3 (for Xtool F1/F2 beds) (3mm diameter x 0.5 pitch x 15mm thread length) this will protrude above the jig (not hold down tight) for easier removal and installation. With 4 of them it will be secure enough laterally, as this is how we use them.
• INSTRUCTION/PREVIEW VIDEO HERE >>> https://youtu.be/DJbPjJxWKro?si=uk13m8T9UtLupE4m

Specifications:

• Laser Capacity Limits - DOUBLE COIN JIG fits 2 coins. QUAD COIN JIG fits 4 coins.
• Coin Size Opening 50mm Jig: Exactly 50.3mm(+\-0.05) - (Real "50mm" blanks/coins will NOT slide around at all.)
• Bolt Opening Diameter 3mm holes for the Xtool F1/F2 bed, 4mm for the Ultra - PLUS 6mm holes to fit a Fiber Laser Beds!
• Bolt Spacing Exactly spaced to fit the F1, F2 &/or F1/F2 Ultra beds.
• As for the Fiber Lasers, the bolt spacing is 25.0 & 50.0mm center to center (verify yours!).
• Thickness - 3mm (.119) Material - Mild or stainless Steel
• Again, measure your coins. I am not responsible if you buy this and your coin is over 50.0mm-or if it is grossly under 50mm.
• Questions - please ask before buying. Thanks
